LOT OF 2 QLogic QLA2342 2GB PCI-X Dual Port Fiber Channel Host Bus Adapter HBA

LOT OF 2 QLogic QLA2342 2GB PCI-X Dual Port Fiber Channel Host Bus Adapter HBA

Regular price $11.49 USD
Regular price $0.00 USD Sale price $11.49 USD
Sale Sold out
Taxes included.

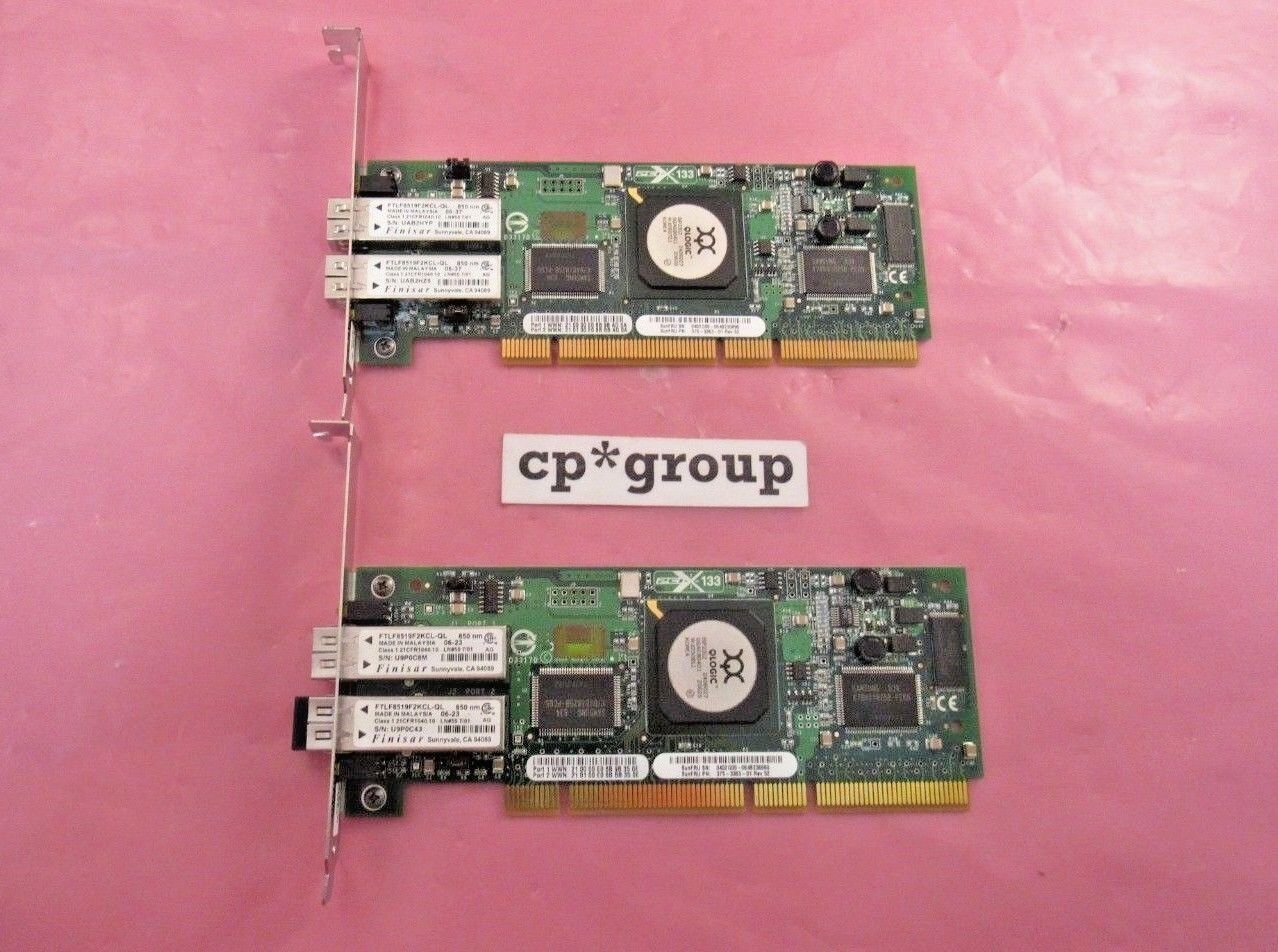

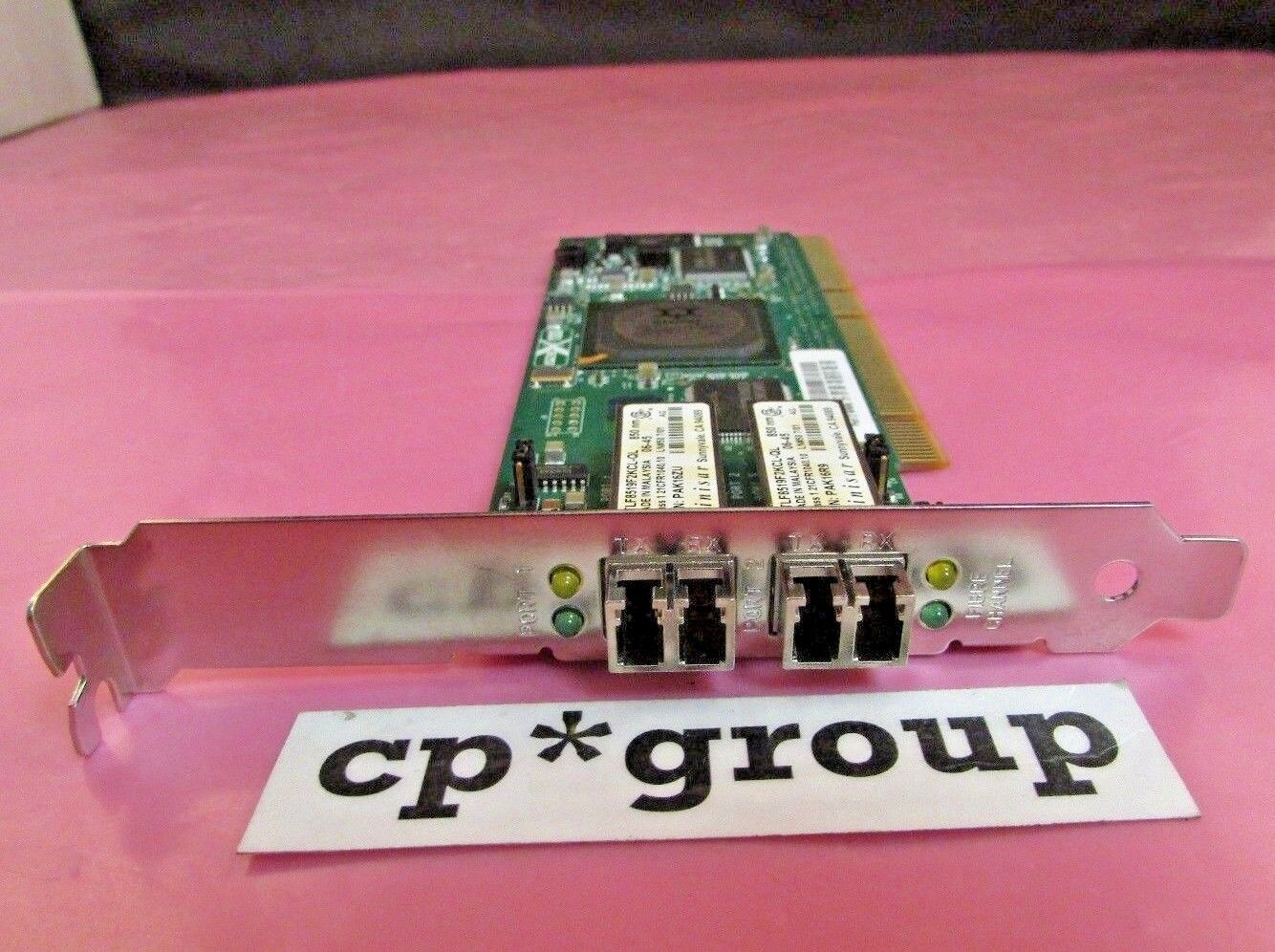

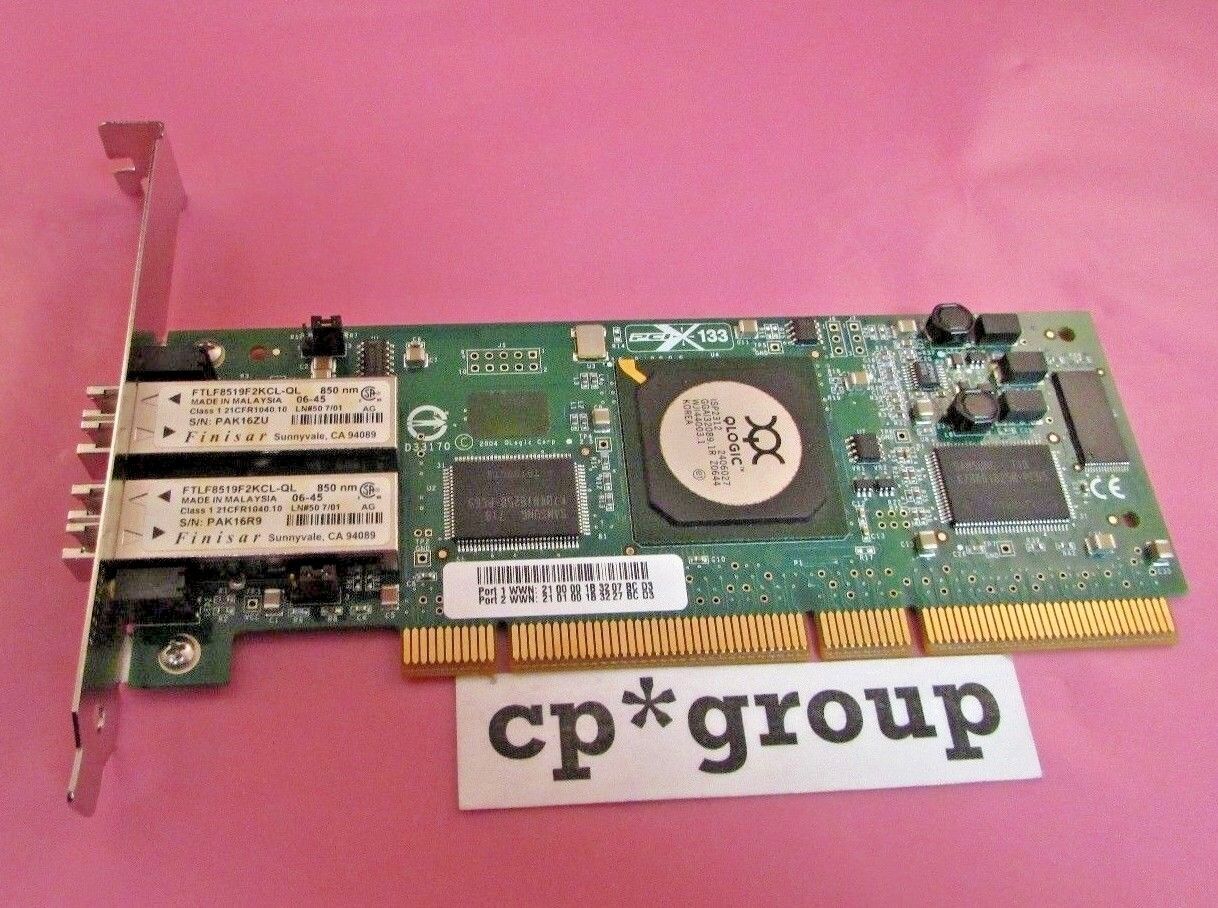

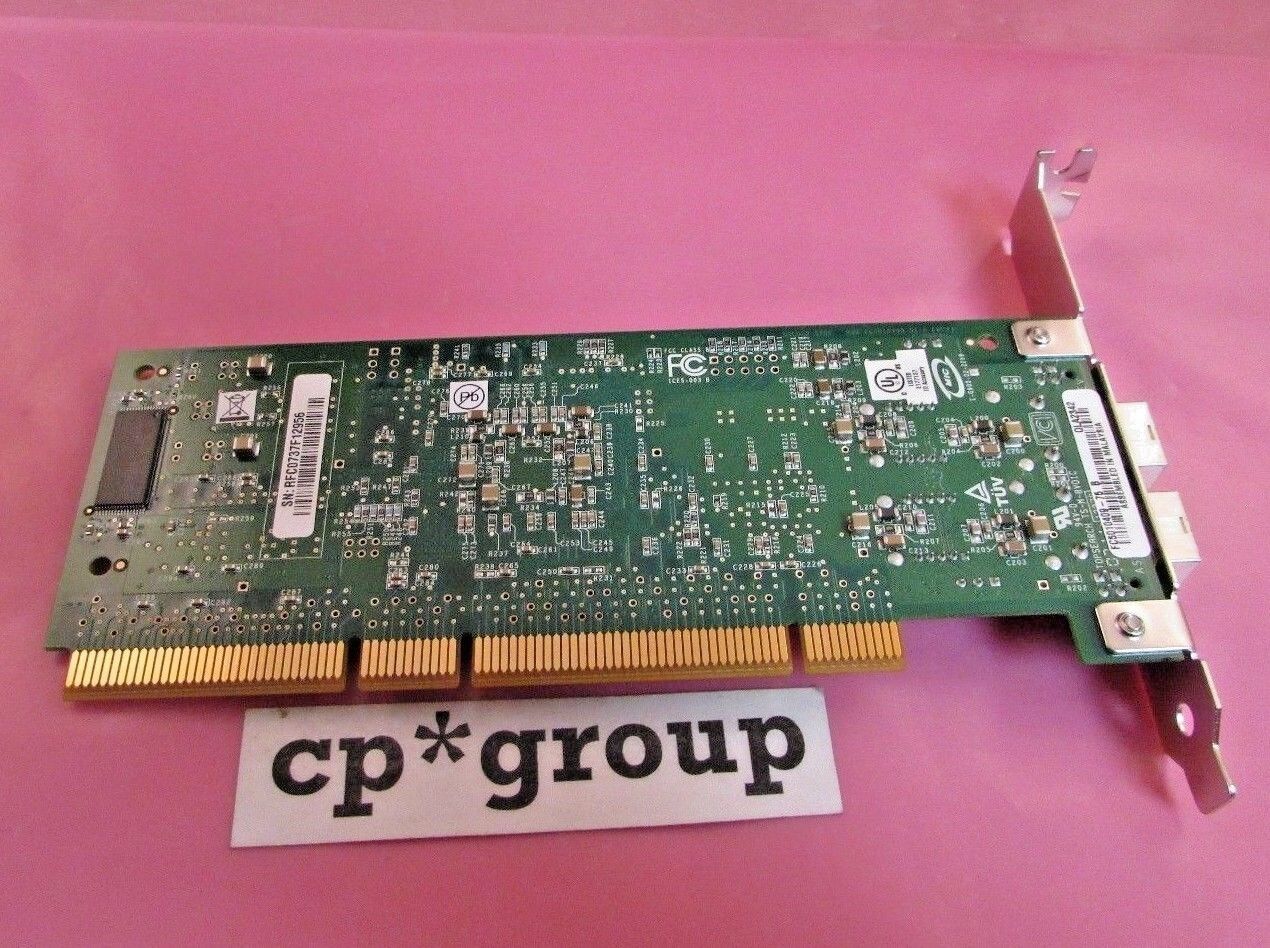

This is a tested working, used, clean, LOT OF 2 , QLogic 2Gb/s 2-Port LC Duplex PCI-X Standard/High Profile Fiber Channel Host Bus Adapters.

The pictures above accurately illustrate the units being sold, please examine them before purchase. (Identification Labeling May Vary According to Revision Number(e.g.:COLOR, SHAPE, SIZE, ETC.).)

QLogic Part #: QLA2342


Features
Technical Information
Total Number of Fibre Channel Ports 2
Number of LC Ports 2
Host Interface PCI-X
Fiber Channel Port Type FL_Port
Fiber Channel Port Type F_Port
Topology Point-to-Point
Topology Arbitrated Loop
Topology Switched Fabric
Fibre Channel Class Supported Class 3
Media & Performance
Media Type Supported Optical Fiber
Fiber Optic Cable Standard 62.5/125 µm
Fiber Optic Cable Standard 50/125 µm
Fiber Mode Supported Multi-mode
Data Transfer Rate 1 Gbit/s
Data Transfer Rate 2 Gbit/s
Physical Characteristics
Form Factor High-profile
Height 2.5"
Width 6.7"
Miscellaneous
Additional Information
  • EMC eLab Tested and Qualified
  • Autonegotiation of Fibre Channel speed bit rate 1 Gbps or 2 Gbps
  • Automatic topology detection
  • Concurrent support for SCSI and IP protocols
  • Simultaneous initiator and target mode support
  • HBA and LUN level failover
  • Persistent binding
  • LUN masking
  • Load balancing for optimized performance
  • RISC processor
  • Airflow: 0 lf/m
  • Diagnostics
  • Loop back test
  • Read/write buffer tests

Boot Support:

  • Intel x86: BIOS (32-bit), EFI (64-bit)
  • Solaris SPARC: FCode
  • This adapter will be loaded with EMC specified BIOS/Firmware releases, and is supported by EMC HBA support
Package Contents
  • SANblade QLA2342-E-SP Fibre Channel PCI-X Host Bus Adapter Card
  • Standard size bracket
Compatibility
  • SNIA API

Operating System:

  • Windows Server 2003 (32-bit and 64-bit)
  • Windows NT
  • Windows 2000
  • Windows XP
  • Solaris SPARC
  • Linux (32-bit and 64-bit)
  • Novell NetWare
Certifications & Standards
  • PCI Local Bus Specification rev. 2.2
  • PCI-X Addendum rev. 1.0a
  • PCI Hot Plug Specification 1.0
  • PCI Bus Power Management Interface Specification rev 1.1
  • RFC 2625 IP and APR
  • Second Generation FC Generic Services Definition (FC-GS-2)
  • Third Generation FC Generic Services Definition (FC-GS-3)

Agency Approvals - Product Safety:

US/Canada:

  • UL, cUL
  • UL60950
  • CSA C22.2 No.60950
  • Class 1 Laser Product per DHHS 21CFR (J)

Europe:

  • 73/23/ECC Low Voltage Directive
  • TUV
    • EN60950: 1992+A1,2,3,4,11
    • EN60825-1: 1994+A11
    • EN60825-2: 1994

Agency Approvals-EMI and EMC

  • US: FCC Part 15, Class B
  • Canada: Industry Canada ICES-003, Class B
  • Europe
  • 89/336/EEC EMC Directive CE Mark:
    • EN55022: 1998 /CISPR22:1997 Class B
    • EN55024: 1998
    • EN61000-3-2:1995
    • EN61000-3-3:1994
  • Japan: VCCI, Class B
  • Taiwan: CNS 13438 Class B
  • New Zealand/Australia: AS/NZS 3548 Class B
  • Korea: MIC

Serial numbers and revisions may vary.

To clarify, if you purchase a quantity of 1 , you will receive 2 Host Bus Adapters .
